Relays are essential components in many electrical and automation systems, acting as switches that control the flow of electricity in circuits. Among the various types of relays, the 24VDC relay stands out due to its wide use in industrial, automotive, and home automation applications. This article delves into the working principle, common applications, and factors to consider when selecting a 24VDC relay.

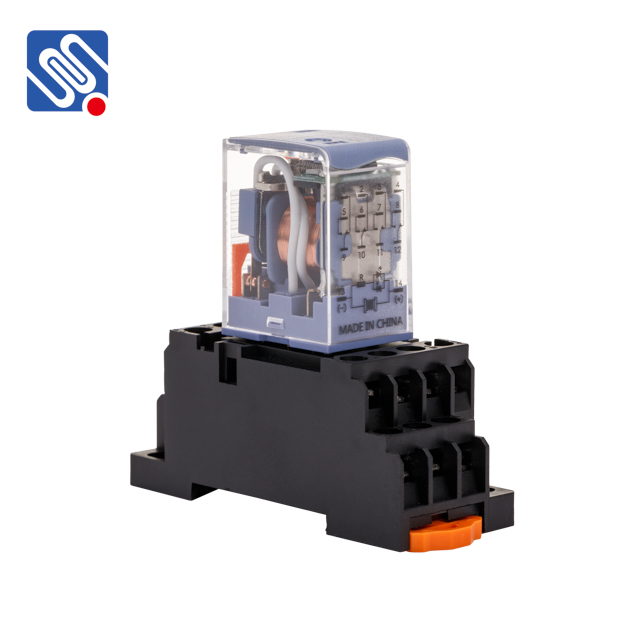

What is a 24VDC Relay? A 24VDC relay is an electromagnetic switch designed to operate with a 24-volt direct current (DC) supply. It consists of an electromagnetic coil that, when energized, creates a magnetic field. This magnetic field activates the relay’s mechanical contacts, which can either open or close depending on the relay’s design. The main purpose of a relay is to control a circuit remotely or to switch a high-power circuit using a low-power signal. The Working Principle of a 24VDC Relay The working principle of a 24VDC relay is based on electromagnetic induction. When a DC voltage of 24V is applied to the relay coil, a magnetic field is generated, which attracts a movable armature. This armature moves to either open or close a set of electrical contacts. The contacts control the flow of current in the connected circuit, turning on or off various devices.
