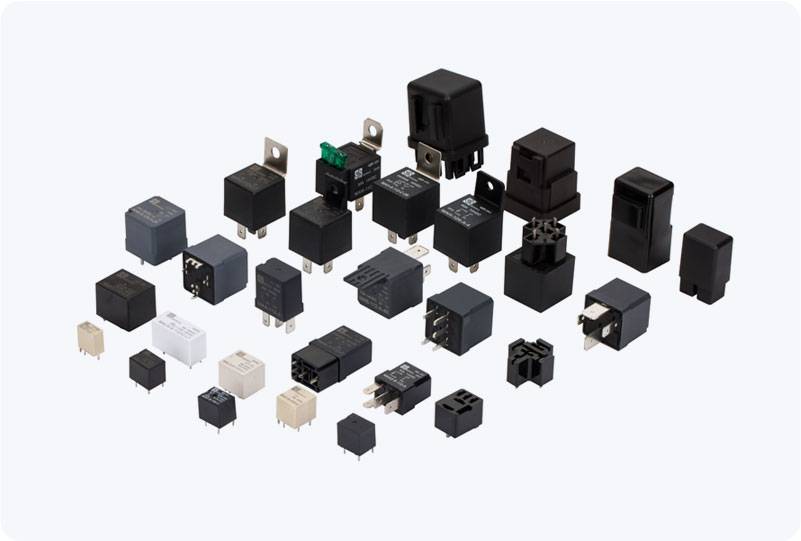

Testing a car relay with a multimeter is an essential skill for anyone interested in diagnosing electrical issues in their vehicle. Car relays are integral to controlling electrical circuits, switching power to various components such as the starter motor, air conditioning, and lights. When these components stop functioning, the problem could lie within the relay, and using a multimeter to test the relay can quickly pinpoint the issue. This guide will walk you through the process of testing a car relay with a multimeter.
Understanding the Car Relay A car relay is a small, electrically operated switch that controls a high-power circuit with a low-power signal. It typically has several terminals： Coil Terminals (2 pins)： These terminals are connected to the control circuit, where the low-power current flows to activate the relay. Contact Terminals (3 pins)： The common (COM), normally open (NO), and normally closed (NC) contacts control the power circuits. When you apply power to the coil, the relay opens or closes its contacts, either allowing or interrupting the power to a specific circuit. If the relay is faulty, it can cause a failure in the connected components. Testing the relay with a multimeter helps identify issues like a broken coil or malfunctioning contacts.
